BrandELSEWEDY PANEL

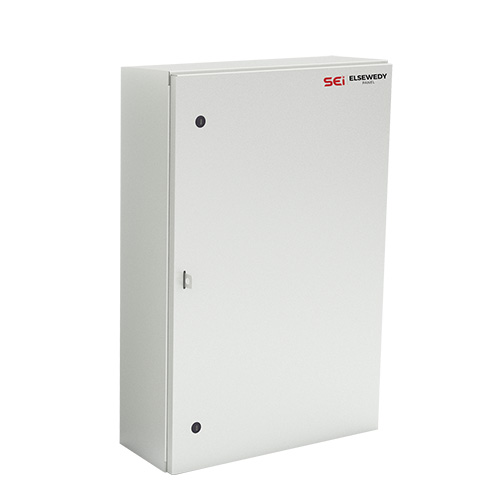

Elsewedy D-Coffret
Elsewedy D-Coffret is one of our low voltage distribution boards, manufactured by us to serve large residential projects to guarantee safety and reliability. It is designed in accordance with standard IEC 61439-1,2 and compatible with electricity distribution companies’ specifications.Specifications
| Specification | Value |
|---|---|
| Material | Sheet Metal 1.5 – 2mm Thickness |
| Degree of Protection | Up to IP54 |
| Incoming | Fuse 250A, Base 400A |
| Outcoming | Fuse 125A, Base 160A & Fuse 160A, Base 250A |
| Bus Bar | High Purity Copper |
| Compliance with Standards | IEC 61439 -1,2 |
