BrandABB

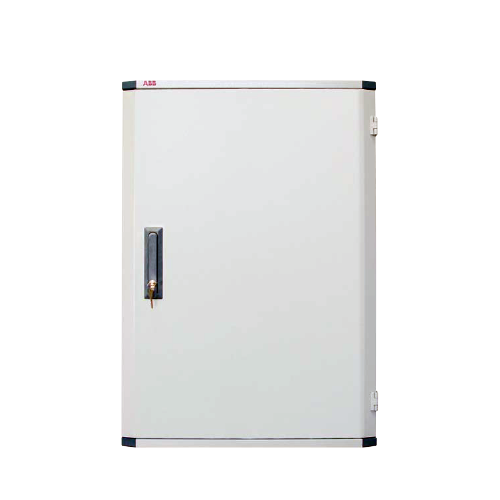

ABB UNIKIT Type Tested
UNIKIT, the innovative enclosure system offers maximum safety, functionality, flexibility, quick and simple assembly. UNIKIT is an extendable system where standardized, components can be assembled quickly and cost-effectively into a complete individual panel.Specifications
| Specification | Value |
|---|---|
| Enclosure Material | Cold rolled sheet steel 1.5 mm |
| Aluzinc steel upon request | |
| Max. Load | Wall Mounted (UNIKIT 150) : 250A |
| Free Standing (UNIKIT 250) : 630A | |
| Max. Voltage | 400V ac, 50/60 Hz |
| Degree of Protection | IP 30 without Door |
| IP 41 with Door | |
| IP 54 on Request | |
| Colour | RAL 7035 (1013 available upon request) |
| Applications | In-house, Industrial, Commercial |
| Compliance with Standards | IEC 439-1/EN 60439-1/BS EN 60439-1&3 |
