BrandVISHAY

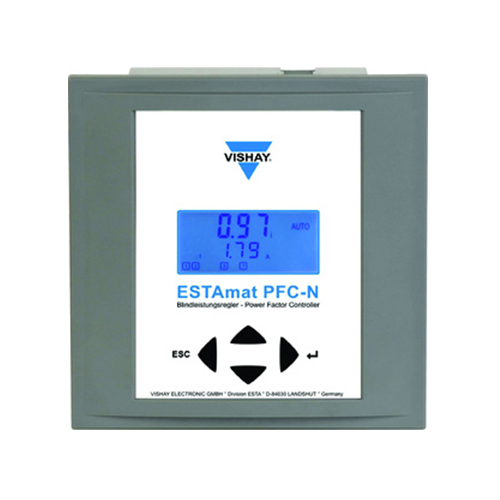

Vishay ESTAmat PFC-N
power factor control units for central reactive power compensation. The ESTAmat PFC-N compares the measured power factor with the set point value (target value) and in order to provide the required compensation, the power factor controllerSpecifications
| Specification | Value |
|---|---|
| 1 to 6 steps and 1 to 12 steps | |
| Supply voltage 90 VAC to 300 VAC | |
| Measuring voltage 90 VAC to 690 VAC, galvanic separation | |
| Temperature sensor | |
| Automatic self-setting | |
| 4-quadrant operation means trouble-free service in generator mode | |
| Alarm functions | |
| Switchboard cut-out | 138 mm x 138 mm |
