BrandELSEWEDY PANEL

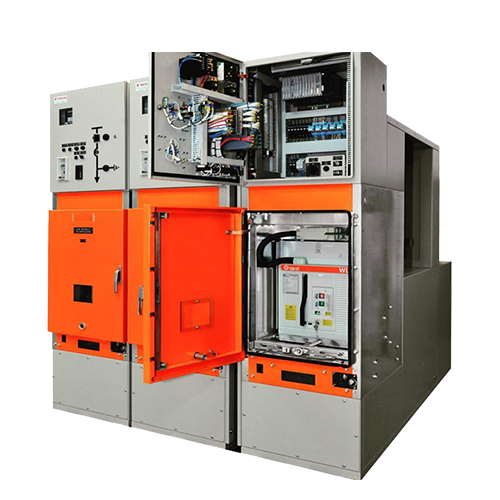

SYSCLAD
Metal clad switchgear SYSCLAD is manufacturing by SEI under license of SAREL Italy SYSCLAD switchgear is fully type tested according to IEC 271200 and approved by EEHC and all electricity distribution companies at Egypt.Specifications
| Specification | Value | |
|---|---|---|
| Voltage | 12 KV | 24 KV |
| Operating Voltage | 11 kV | 22 KV |
| Rated Frequency | 50/60 Hz | |
| Rated Power Frequency Withstand Voltage Ud | 28 kV | 50 KV |
| Rated Lightning Impulse Withstand Voltage Up | 75 | 125 kv |
| Bus Bar Material | Electrolytic copper | |
| Rated Current | 1250 A | |
| Rated Short-circuit Breaking Current (ISC) | 31.5 kA | 25 kA |
| Rated Peak Withstand Current (Ip) | 80 kA | 62.5 kA |
| Rated Duration of Short Circuit Current (TK) | 3 s | |
| Loss of Service Continuity Category | LSC2B | |
| Partition Class | PM | |
| Degree of Protection | IP 4X | |
| Ambient Temperature | 45° C | |
| Standard Color | RAL7035 | |
| Internal ACR Class | AFLR | |
| Internal ACR Testing Current | 31.5 KA | 25 KA |
