BrandSocomec

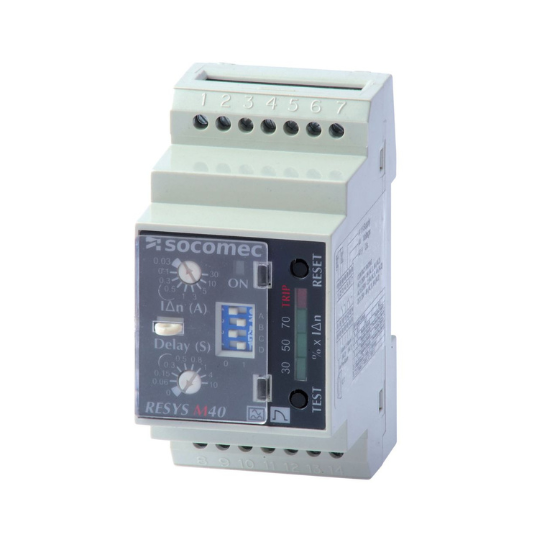

Socomec Resys M40
RESYS M40 earth leakage relays associated with a remote trip breaking device (automatic power breaking), provide the following functions:- protection against indirect contact.
- limitation of leakage currents
Specifications
| Specification | |
|---|---|
|
RESYS M40 with 2 configurable relays |
|
|
Adjustment sensitivity from 0.03 mA to 30 A. |
|
| Time delay 0 to 10 s. | |
| Tripping accuracy by TRMS measurement. | |
| Automatic instantaneous tripping at 30 mA. | |
| Positive or negative security configurable by the user. | |
| Selection of toroid ratio. | |
| Automatic permanent relay-toroid connection test. | |
| Sealable cover. | |
