BrandMersen

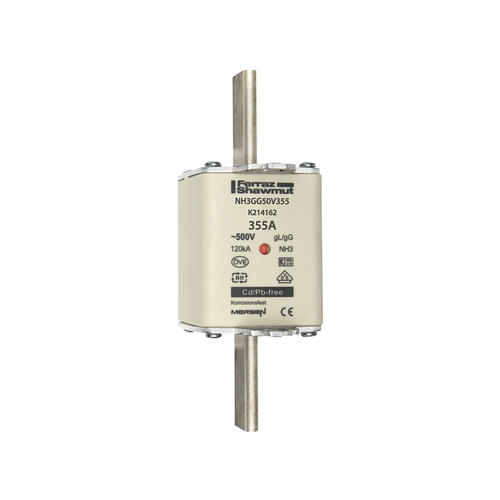

Mersen NH fuse gG 500VAC K214162
Type "gG" NH fuse-links are full range breaking capacity fuse-links and are used to protect cables and equipment. They can interrupt any current surge, from the lowest fusing current up to their breaking capacity, and so can be used alone as protection. They also protect electrical devices and industrial set-ups from the electrodynamic effects of very high short-circuit currents.Specifications
| Specification | Value |
|---|---|
| Catalog number | NH3GG50V355 |
| Item number | K214162 |
| Rated voltage AC (IEC) | 500 V |
| Rated voltage DC (IEC) | 250 V |
| Rated current | 355 A |
| Power dissipation | 32 W |
| Width | 51 mm |
