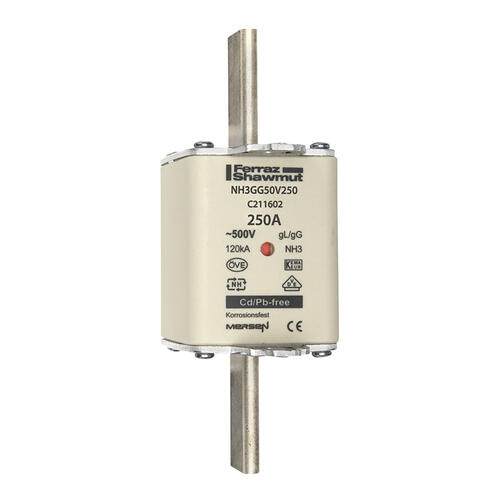

Mersen NH fuse gG 500VAC C211602

Type "gG" NH fuse-links are full range breaking capacity fuse-links and are used to protect cables and equipment. They can interrupt any current surge, from the lowest fusing current up to their breaking capacity, and so can be used alone as protection. They also protect electrical devices and industrial set-ups from the electrodynamic effects of very high short-circuit currents.


Specification Value
Catalog number NH3GG50V250
Item number C211602
Rated voltage AC (IEC) 500 V
Rated voltage DC (IEC) 250 V
Rated current 250 A
Power dissipation 21.1 W
Width 51 mm
