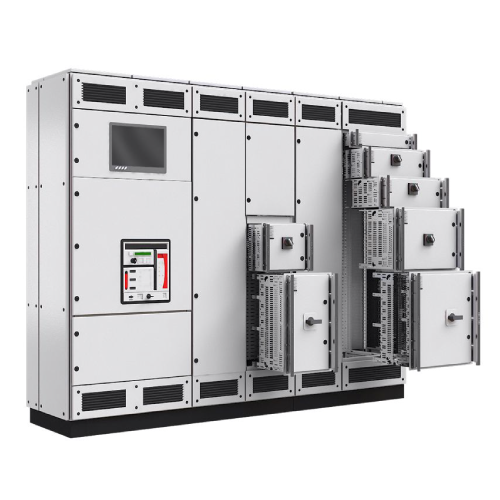

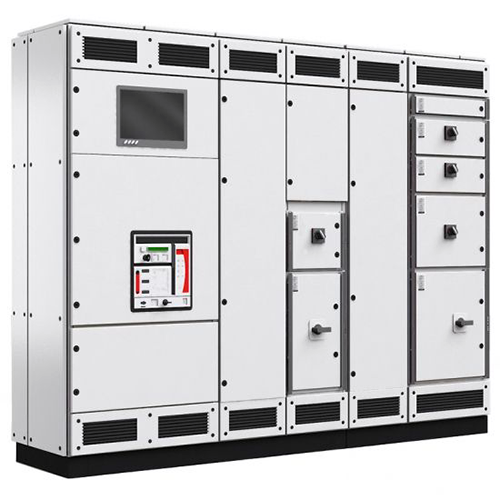

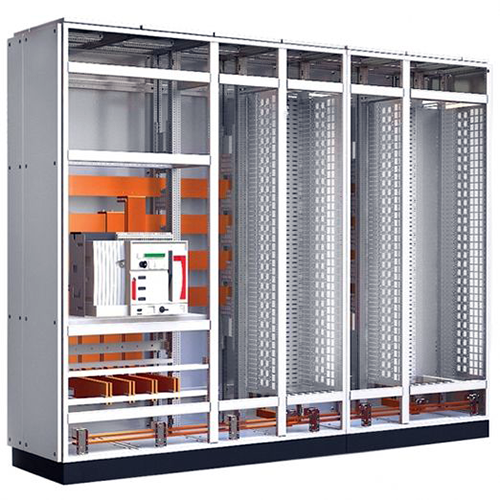

ELSTEEL Techno Module Type Tested
We are “Certified ELSTEEL Panel Builder” for the Type-Tested (MDB, MCC) since 2011 This is the original 200 mm modular grid solution. Our patented modular construction is designed to build Low Voltage Panel boards, Switchboards and Motor Control Centers. Open to all circuit breaker brands, flexibility allows you to make changes to the board during and after construction. All systems are IEC 61439-2 Design Verified - Up to 7100A Current Rating. Elsteel products are manufactured under strict quality assurance - ISO 9001- certified and audited by DNV GL.Specifications
| Specification | Value | |
|---|---|---|
| Installation | Indoor | |
| Mounting Type | Floor Standing / Wall Mounting | |
| Paneling Standard Colour | RAL7035 Fine texture (Inquire for Nonstandard Colours) | |
| IP Rating | IP43, IP44, IP54, IP55 | |
| Form of Segregation | 1, 2a, 2b, 3a, 3b, 4a, 4b | |
| Rated Current (In) for TM panels | Up to 7100A | |
| Applications | Low Voltage Power Switchgear and Control Gear Assembly Power Distribution, Motor Control Centres,PLC & DCS Panel Boards | |
| Compliance with Standards | IEC 60439-1 / IEC 61439-1 & 2 | |
