BrandABB

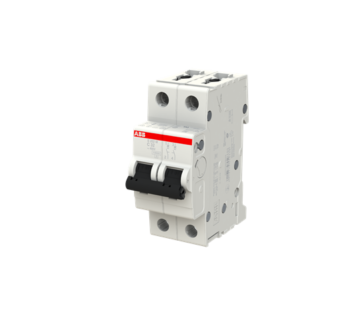

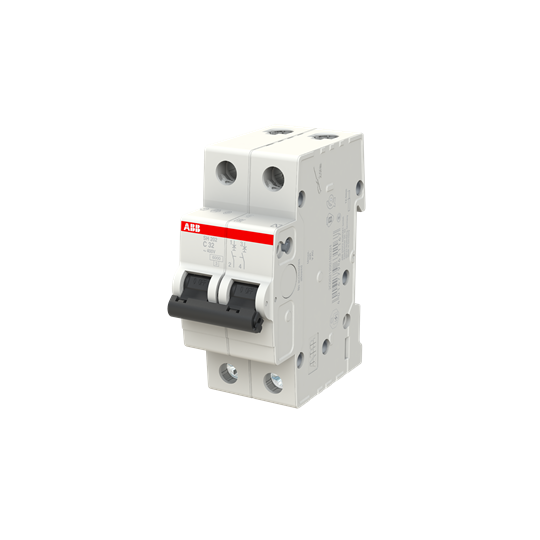

ABB SH202 2P 6kA MCB
Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.Specifications
| Specification | Value |
|---|---|
| Standards | IEC 60898-1 |
| Tripping Characteristic | C |
| Rated Current (In) | 10 A – 63A |
| Rated Short-Circuit Capacity | 6 kA |
| Electrical Endurance | 20000 AC cycle |
| Mechanical Endurance | 20000 cycle |
