Brand3M

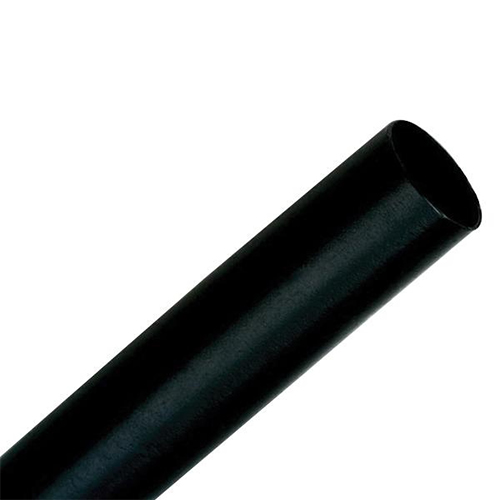

"3M™ 3M™ Heat Shrink Tubing FP-301 Flexible, Polyolefin"
"3M™ Heat Shrink Tubing FP-301 offers an excellent balance of electrical, physical and chemical properties for a wide variety of industrial and military applications. Rated for 135°C continuous operation, all 3M FP-301 tubing is split resistant, mechanically tough, easily marked and resists cold flow. 3M FP-301 tubing is rated for continuous operation at -55°C (-67°F) to 135°C (275°F), and is designed to withstand elevated temperatures to 300°C (572°F) for short periods. Minimum shrink temperature for all 3M FP-301 tubing is 100°C (212°F)."Specifications
| Specification | Value |
|---|---|
| Cable O.D (mm) | 3M FP-301 tubing has a 2:1 shrink ratio. When freely recovered, the tubing will shrink to 50% of its as-supplied internal diameter. The recovered wall thickness is proportional to the degree of recovery. |
| Dielectric Strength | 900 V/mil |
| Expanded Inner Diameter | 0.25 in, 0.093 in, 1.25 in, 0.375 in, 0.75 in, 1 in, 2 in, 0.187 in, 0.5 in, 4 in, 1.5 in, 0.063 in, 0.125 in, 0.046 in, 3 in, 0.06 in |
| Expanded Inner Diameter (Metric) | 6.35 mm, 2.36 mm, 31.75 mm, 9.53 mm, 19.05 mm, 25.40 mm, 50.80 mm, 4.75 mm, 9.5 mm, 12.70 mm, 101.6 mm, 38.10 mm, 1.6 mm, 3.18 mm, 1.17 mm, 76.2 mm, 50.8 mm, 38.1 mm, 1.59 mm |
| Inner Diameter After Shrink (Imperial) | 0.125 in, 0.046 in, 0.63 in, 0.187 in, 0.375 in, 0.5 in, 0.093 in, 0.25 in, 2 in, 1 in, 0.75 in, 0.031 in, 0.062 in, 0.023 in, 1.5 in, 0.252 in |
| Inner Diameter After Shrink (Metric) | 3.18 mm, 1.17 mm, 16 mm, 4.75 mm, 9.53 mm, 12.7 mm, 2.36 mm, 6.35 mm, 50.8 mm, 25.4 mm, 19.05 mm, 7.87 mm, 1.57 mm, 3.75 mm, 0.58 mm, 38.1 mm, 0.787 mm, 1.16 mm, 0.79 mm, 21.7 mm, 3.17 mm |
| Inner Diameter Before Shrink (Imperial): | 0.25 in, 0.093 in, 1.25 in, 0.375 in, 0.75 in, 1 in, 0.187 in, 0.5 in, 4 in, 2 in, 1.5 in, 0.063 in, 0.125 in, 0.046 in, 3 in, 0.472 in |
| Inner Diameter Before Shrink (Imperial): | 6.35 mm, 2.36 mm, 31.75 mm, 9.53 mm, 19.05 mm, 25.4 mm, 4.75 mm, 12.7 mm, 101.6 mm, 50.8 mm, 38.1 mm, 1.6 mm, 3.18 mm, 1.17 mm, 76.2 mm Material:Flexible Polyolefin, Polyolefin |
| Maximum Operating Temperature (Celsius) | 135 ℃ |
| Minimum Expanded Tubing I. D. | 1 in, 3 in, 0.375 in, 0.75 in, 4 in, 2 in, 0.063 in, 0.125 in, 0.187 in, 0.25 in, 0.5 in, 0.093 in |
| Minimum Shrink Temperature (Celsius) | 100 |
